Multiple Axis Single Y Working Station Soldering Machine/Robot with File Storage
Introduction
This automatic soldering machine is double soldering head machine, customized moving range to 400mm. The machine is used to save labor, use automatic soldering method to instead traditional manual soldering. During the operation, only need one operator to loading and unloading the product after setting the program. With the machine not only can improve the production efficiency, but also improve the soldering quality, it's a more precision and flexible soldering method.
We have many options for the soldering machine, axis from 3 axis to max 8 axis, if rotation or not, and working platform single or dual, all depends on your requirement.
Specification
| Model | HS-S441S | HS-S551S | HS-S661S |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 400*400*100mm | 500*500*100mm | 600*600*100mm |
| R axis | none |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage | It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points) |
| File storage space | Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points) |
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 40kg | 50kg | 55kg |
| Machine dimension | 615*685*800mm | 715*715*800mm | 815*815*800mm |
Main machine configuration
1, Double soldering Iron, single Y working platform.
2, Handheld teach pendant programmer.
3, Heating controller
4, Broken tin controller

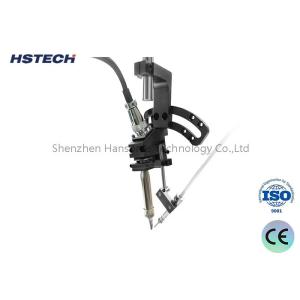

5, Solder pen assembly
6, Welding tip
7, Tin out components
Features
1, 3-axis operation with single Y-axis work platform.
2, Dual soldering iron model offering variable movement ranges tailored to product dimensions.
3, Constructed from premium aluminum, featuring a proprietary aluminum alloy arm for robust stability, resistance to bending, and rust-proof design.
4, Versatile welding methods including point & drag welding supported.
5, Intuitive pendant programming system capable of storing up to 99 programs.
6, Integrates stepper motor & timing belt control with Taiwan-brand linear guides for precision.
About Product
About Detail
About Packaging
|
|
High Precision Automatic Soldering Robot with Customized Moving Range Images
|
